S&T DYNAMICS TNL-120V; 2007; 40 Chuck; 60 Swing

S&T DYNAMICS TNL-120V; 2007; 40" Chuck; 60" Swing

Age: 2007

Stock Number: 4901


Click to view larger photo

Request A Quote On Our Stock Number: 4901 S&T DYNAMICS TNL-120V; 2007; 40 Chuck; 60 SwingRequest a quote on stock# 4901
SpecificationDescription
Chuck Size40"
Max. Swing60"
Max Turning Height35.4"
Max Turning Diameter51.2"
Max. Load8,800 LBS
X-Axis Travel31"+ 7.8"
Z-Axis Travel29"
Feedrate0.04~197 IPM
Rapid Traverse295 IPM
Turret Positions6
Spindle Speeds1~400 RPM
Spindle Motor50/40 HP
Approximate Dimensions137" x 163" x 164"
Approximate Weight25,000 LBS

Equipped With:

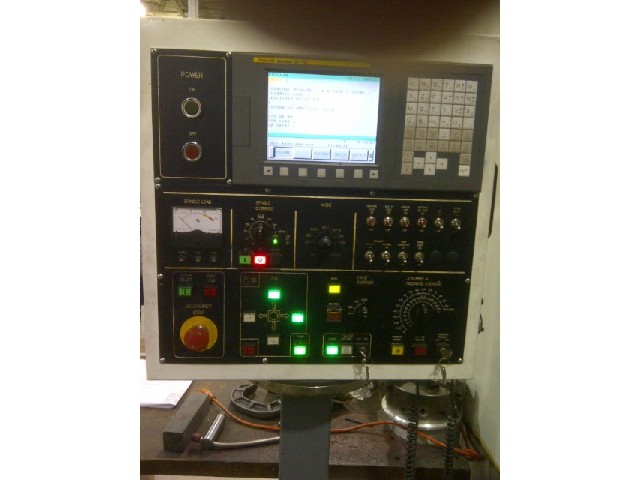

Fanuc 0i-T CNC Control
Central Automatic Lubrication System
Central Hydraulic System
40" Hydraulic Chuck
Manual Pulse Generator
Foot Switch
Continuous Chip Flush System
Cycle-Finish Signal Light
Coolant Supply Equipment
Operation & Maintenance Manuals
Splash Guard
