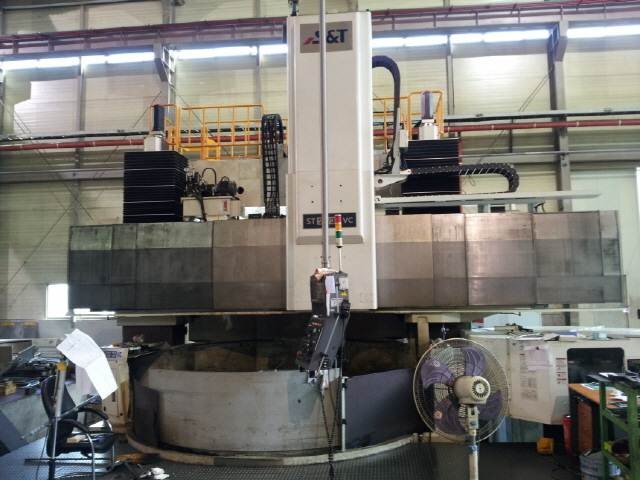

Request a quote on stock# 5191| Specification | Description |
|---|---|
| Table Size | 98.4" |
| Max. Table Load | 55,000 Lbs |
| Max. Swing | 137.8" |
| Max. Cutting Height | 80.7" |
| Table Motor | 75 HP (100 Optional) |
| Table Speed | 1 ~ 130 RPM |
| X-Axis Travel | 7.9" + 110.2" |
| Z-Axis Travel | 47.2" |
| W-Axis Travel (Cross Rail) | 43.3" |
| Rapid Traverse (X/Z) | 394 IPM |
| Tools | 16 ATC |
| Spindle Speed | 15 ~ 2,000 RPM |
| Spindle Motor | 25 HP |
| Spindle Taper | #50 |

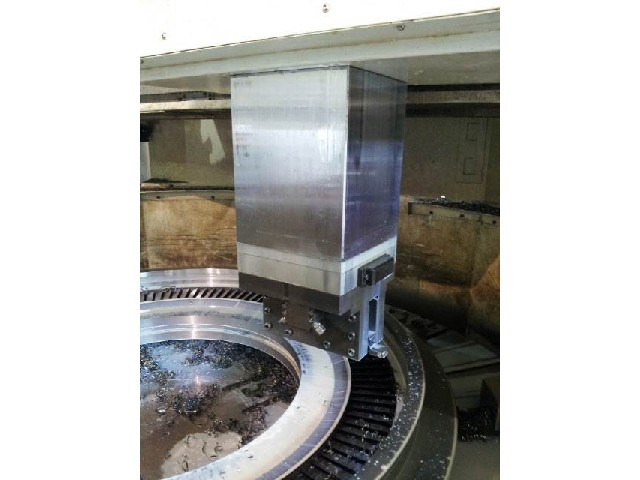

| Ram Size | 11.8" x 11.8" |
| Max. Tool Weight | 154 LBS |
| Approximate Dimensions | 437" x 335" x 285" |
| Approximate Weight | 160,000 LBS |
