Request a quote on stock# 5634| Specification | Description |
|---|---|
| Maximum Swing | 24.02 |
| Maximum Turning Diameter | 18.86" |
| Maximum Turning Length | 18.90 |
| Spindle Nose | A2-8 |
| Spindle Motor | 25/29HP |
| Spindle Speed | 3,000 RPM |
| X Axis Travel | 10.24" |
| Z Axis Travel | 18.9" |
| Milling Spindle Motor | 3/5 HP |
| Milling Spindle Spped | 3,000 RPM |

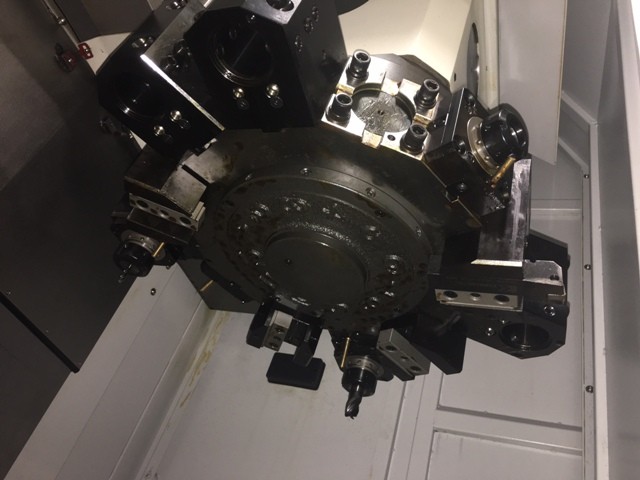

| Tool Positions | 12 |
| C Axis Spindle Index | 0.001 Degree |
| Approximate Machine Weight | 14,000 LBS |
