S&T DYNAMICS ST-10/14V; 2014; 40 Chuck; 55 Swing;

S&T DYNAMICS ST-10/14V; 2014; 40" Chuck; 55" Swing;

Age: 2014

Stock Number: 5720


Click to view larger photo

Request A Quote On Our Stock Number: 5720 S&T DYNAMICS ST-10/14V; 2014; 40 Chuck; 55 Swing;Request a quote on stock# 5720
SpecificationDescription
Chuck Size40"
Max. Swing55.1"
Max Turning Height30.7" + 7.8"
Max Turning Diameter51.2"
Max. Load8,800 LBS
X-Axis Travel37.8"
Z-Axis Travel33.8" + 3.9"
Feedrate0.04~197 IPM
Rapid Traverse393 IPM

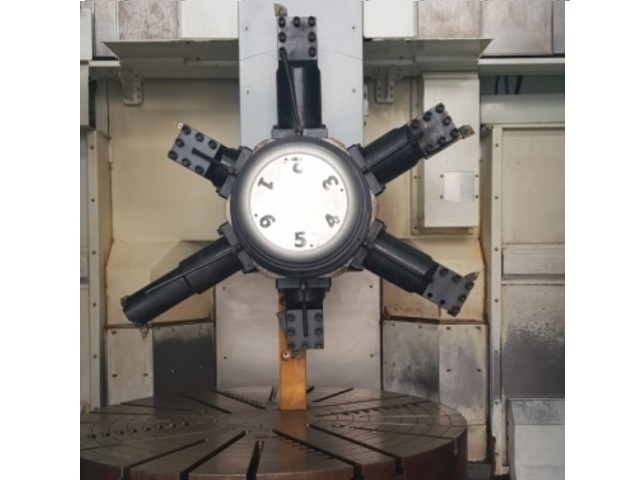

Turret Positions6
Spindle Speeds1~450 RPM
Spindle Motor50/40 HP
Approximate Dimensions189" x 155" x 163"
Approximate Weight32,000 LBS

Equipped With:

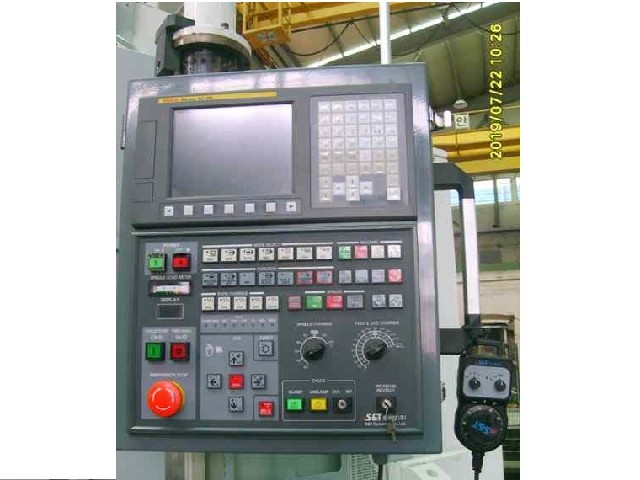

Fanuc 0i-TD CNC Control
2-Speed ZF Gear Box
Extended Z-Axis Column
49" Manual Chuck
FOB: Los Angeles
