S&T DYNAMICS ST-16/22V; 2015; 63Chuck; 86 Swing; Live Tools

S&T DYNAMICS ST-16/22V; 2015; 63"Chuck; 86" Swing; Live Tools

Age: 2015

Stock Number: 5722

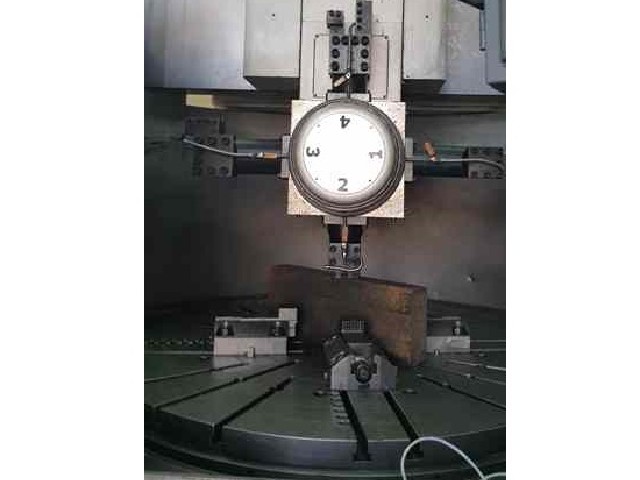

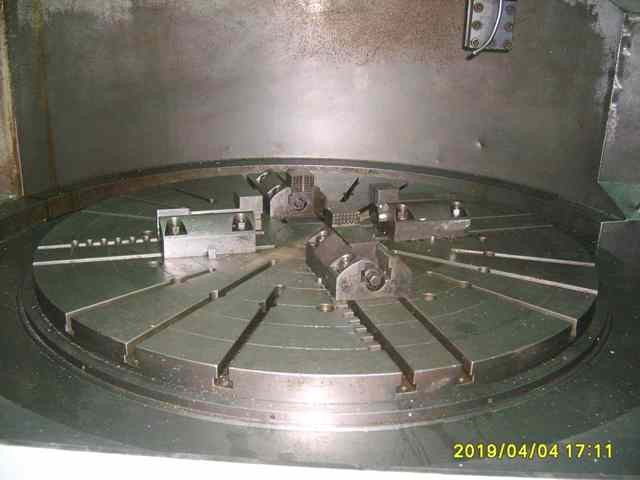

Click to view larger photo

Request A Quote On Our Stock Number: 5722 S&T DYNAMICS ST-16/22V; 2015; 63Chuck; 86 Swing; Live ToolsRequest a quote on stock# 5722
SpecificationDescription
Chuck Size63"
Max. Swing86.7"
Max Turning Height29.5"
Max Turning Diameter78.7"
Max. Load22,000 LBS
X-Axis Travel1.9" + 48"
Z-Axis Travel35.4"
Feedrate0.04~197 IPM
Rapid Traverse393 IPM
Turret Positions4/8
Spindle Speeds1~256 RPM
Spindle Motor50/60 HP
Approximate Dimensions186" x 169" x 168"
Approximate Weight42,000 LBS

Equipped With:
Fanuc 0i-TD CNC Control
2-Speed ZF Gear Box
63" Manual Chuck
FOB: Los Angeles







FOB: Los Angeles Port
DELIVERY: 120 Days
