DMC FM50V; 2014; 31.5 x 24 x 20 Vertical Machining Center

DMC FM50V; 2014; 31.5" x 24" x 20" Vertical Machining Center

Age: 2014

Stock Number: 5633

                            View a video of DMC FM50V; 2014; 31.5 x 24 x 20 Vertical Machining Center
Click to view larger photo

Request A Quote On Our Stock Number: 5633 DMC FM50V; 2014; 31.5 x 24 x 20 Vertical Machining CenterRequest a quote on stock# 5633
SpecificationDescription
Table Size37.4" x 21.65"
X Axis Travel31.49"
Y Axis Travel20.47"
Z Axis Travel20.08"
Maximum Table Load1,323 LBS
Spindle TaperCAT# 40
Spindle Speed15,000 RPM
Spindle Motor25 / 29.5 HP
Tool Positions30
Approximate Machine Weight14,500 LBS
Rapid Traverse Rate X & Y2362 IPM
Rapid Traverse Rate Z1417 IPM
Tool Change Time Chip to Chip4.3 sec
Tool Change Time Tool to Tool1.8 sec


Equipped With:

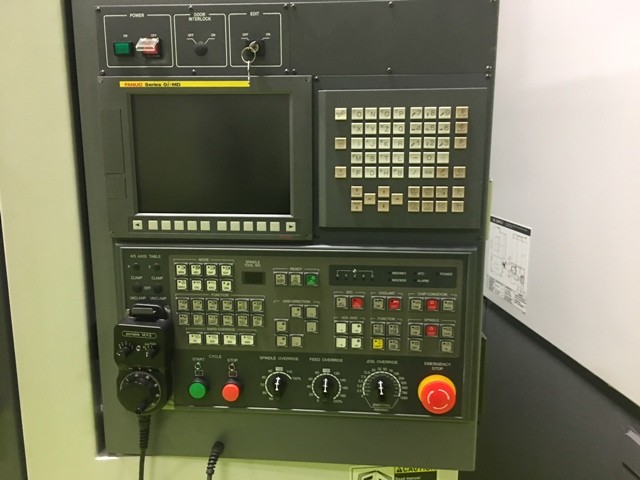

Fanuc 0i-MD CNC Control
TSC Prep - No Pump
4th Axis Prep
