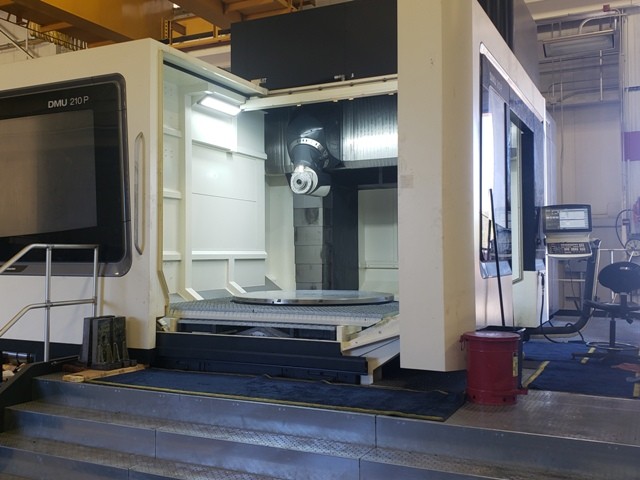

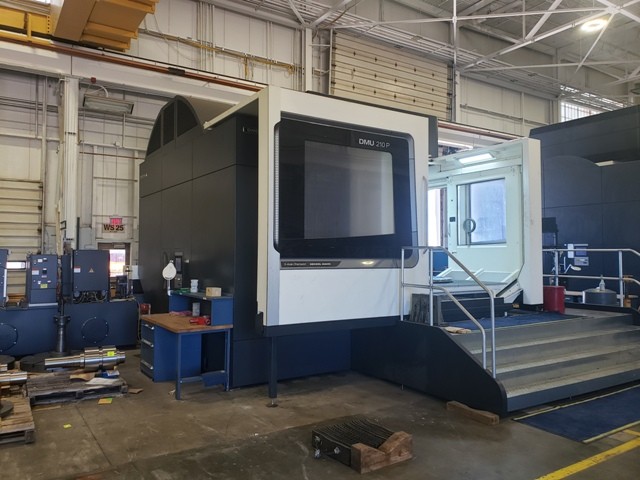

DMG MORI DMU 210 P; 2018; Universal Machining Center

DMG MORI DMU 210 P; 2018; Universal Machining Center

Age: 2018

Stock Number: 5701

                                   View a video of DMG MORI DMU 210 P; 2018; Universal Machining Center
Click to view larger photo

Request A Quote On Our Stock Number: 5701 DMG MORI DMU 210 P; 2018; Universal Machining CenterRequest a quote on stock# 5701
SpecificationDescription
Table Diameter66.9"
X Axis Travel82.7"
Y Axis Travel82.7"
Z Axis Travel49.2"
Maximum Table Load17,637 lbs
Spindle Speed12,000 RPM
Spindle TaperSK 50
Tool Change123 ATC
Spindle Drive Motor70 / 56 HP
Spindle Center to Table Surface Horizontal5.1" - 54.3"
Spindle Center to Table Surface Vertical9.1" - 58.3"
Spindle Nose to Table Center Horizontal29.5" - 53.1"
Spindle Nose to Table Center Vertical33.5" - 49.2"
NC Rotary Table12 RPM
Approximate Machine Weight105,800 LBS

Equipped With:

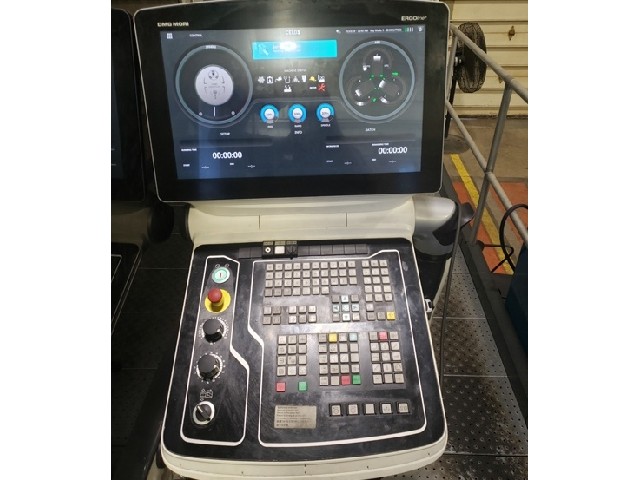

CELOS Siemens 840D
Universal Milling Head (B Axis)

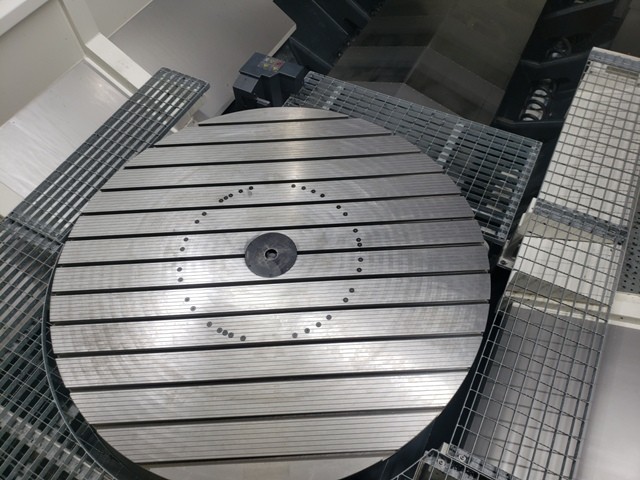

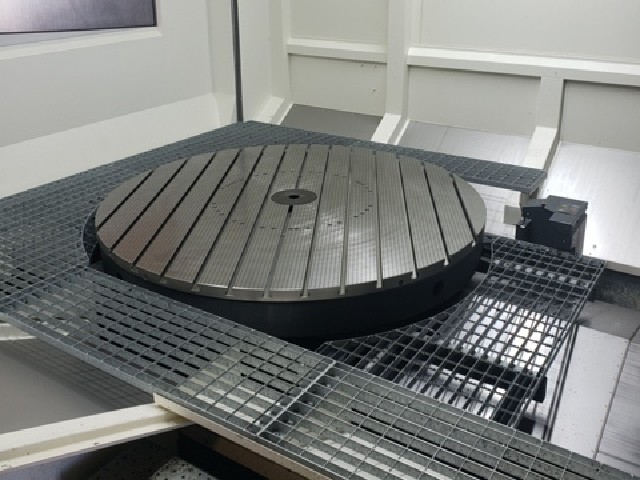

NC Rotary Table
Through Spindle Coolant
Chip Conveyor
