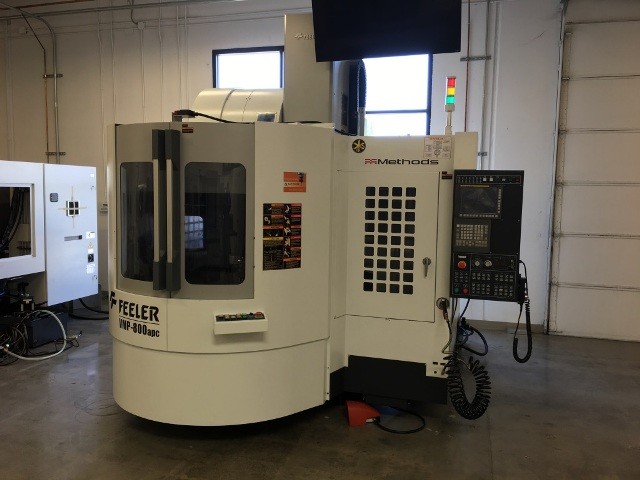

FEELER VMP-800 APC; 2016; Pallet Changer Vertical Machining Center

FEELER VMP-800 APC; 2016; Pallet Changer Vertical Machining Center

Age: 2016

Stock Number: 5726


Click to view larger photo

Request A Quote On Our Stock Number: 5726 FEELER VMP-800 APC; 2016; Pallet Changer Vertical Machining CenterRequest a quote on stock# 5726
SpecificationDescription
Table Size19.7" x 27.6"
X Axis Travel32.28"
Y Axis Travel20.47"
Z Axis Travel19.88"
X/Y Axis Rapid Traverse Rate1890 IPM
Z Axis Rapid Traverse Rate1181 IPM

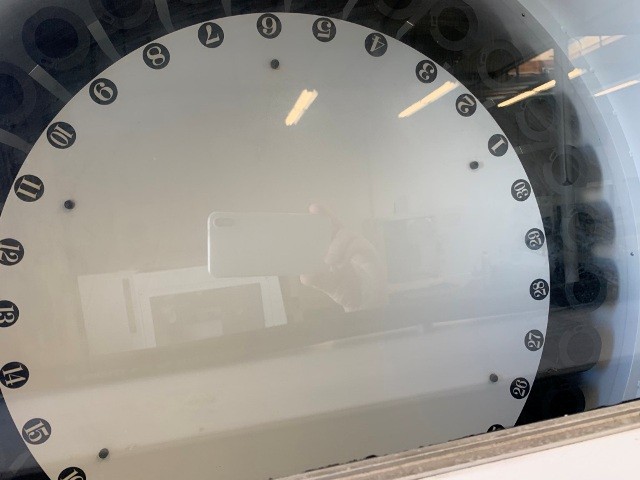

Tool Changer30 ATC
Spindle TaperBT 40
Spindle Speed15,000 RPM
Spindle Drive Motor30 HP
Spindle Nose to Table Surface5.1" - 25"
Spindle Center to Column Surface22"
Approximate Machine Weight16,550 LBS


Equipped With:
Fanuc 0i-MF CNC Control
2 Station Rotary Pallet Changer

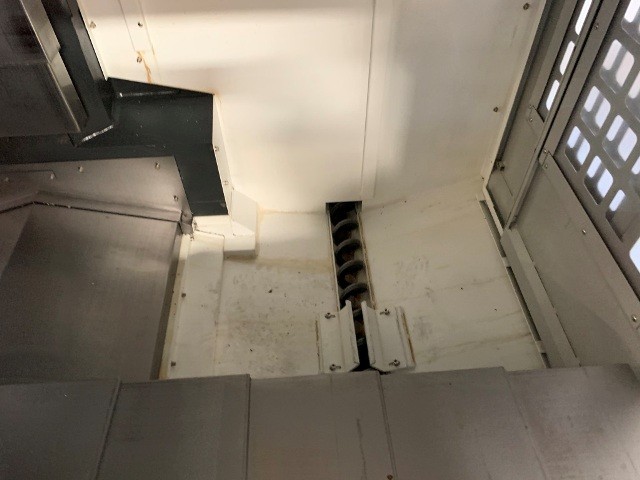

Chip Conveyor
