Request a quote on stock# 5729| Specification | Description |
|---|---|
| X Axis Travel | 23.1" |
| Y Axis Travel | 17.7" |
| Z Axis Travel | 25.1 |

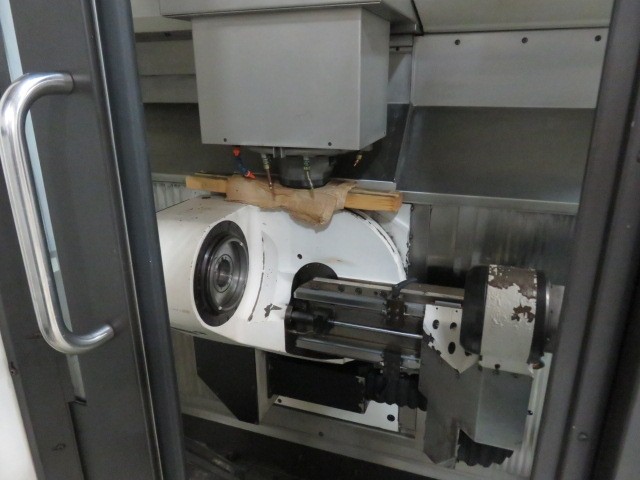

| A Axis Travel | 360 Deg Continuous |
| B Axis Travel | -45 deg / + 101 deg |
| Feed Rate (X,Y,Z) | 0 - 866"/min |
| Feed Rate A Axis | 0 - 200 RPM |
| Feed Rate B Axis | 0 - 80 RPM |
| Centerline Height A Axis | 7.08" |
| Recommended Max Impeller Diameter | 9.8" |
| Distance A Rotary Table to B Axis | 5.9" |
| Distance A Axis to B Axis | 3.54" |
| Maximum Milling Spindle Speed | 20,000 RPM |
| Milling Spindle Horsepower | 40.2 HP |
| Spindle Taper | HSK A63 |

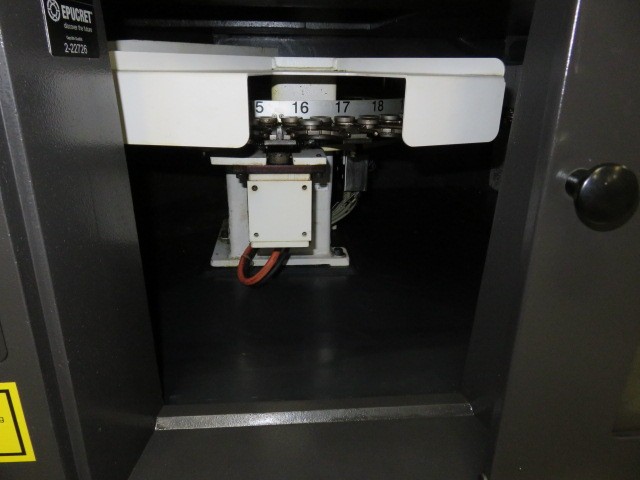

| Tool Changer | 30 ATC |
| Approximate Machine Weight | 17,000 LBS |
