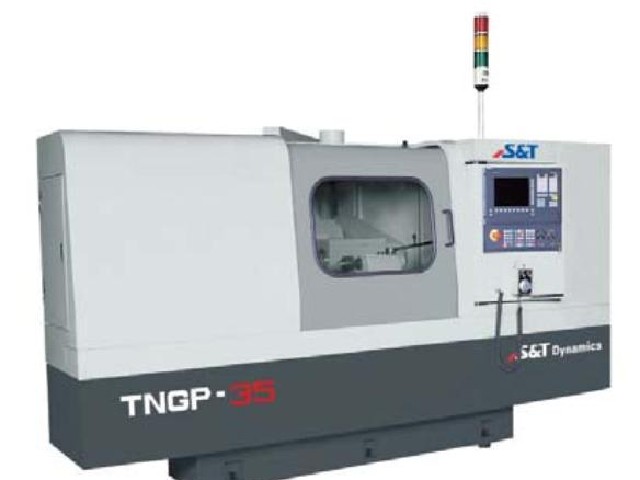

Request a quote on stock# 4845| Specification | Description |
|---|---|
| Swing over Table | 13.8" |
| Center Distance | 23.6" |
| Max. Grinding Diameter | 11.8" |
| Max. Workpiece Weight | 330 LBS |
| Wheel Size | 15.9" x 1.9" x 5.9" |
| Wheel Width | 3.1" |
| Wheel Head Speed | 1,700 RPM |
| X-Axis Travel | 10.8" |
| Z-Axis Travel | 32.3" |
| Min. Increment | 0.00003" |
| Rapid Feed Rate ( X / Z ) | 197 / 315 IPM |
| Table Swing Angle | 9 + 1 Degree |
| Work Head Center | MT #4 |
| Work Head Speed | 500 RPM |
| Tail Stock Center | MT #4 |
| Tail Stock Travel | 1.6" |
| Spindl Motor | 5 HP |
| Center Height | 42.9" |
| Approximate Dimensions | 136" x 79" |
| Approximate Weight | 7,000 LBS |
