S&T DYNAMICS TNGA-33; NEW; 12.9 Swing; 19.6 Centers; CNC Angular

S&T DYNAMICS TNGA-33; NEW; 12.9" Swing; 19.6" Centers; CNC Angular

Age: NEW

Stock Number: 4846

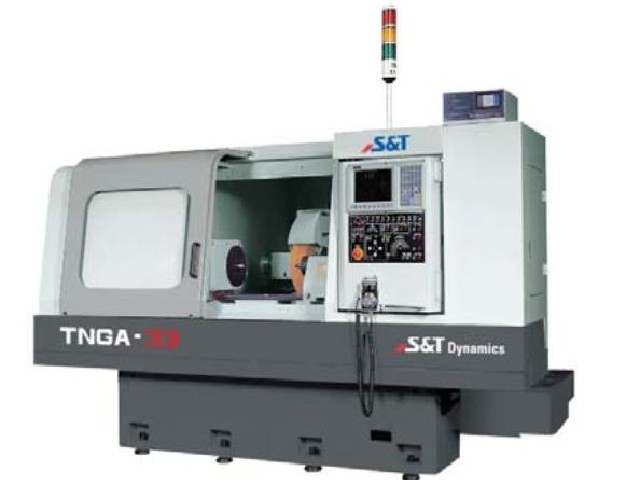

Click to view larger photo

Request A Quote On Our Stock Number: 4846 S&T DYNAMICS TNGA-33; NEW; 12.9 Swing; 19.6 Centers; CNC AngularRequest a quote on stock# 4846
SpecificationDescription
Swing over Table12.9"
Center Distance19.6"
Max. Grinding Diameter10.2"
Max. Workpiece Weight440 LBS
Wheel Size24" x 1.8" x 10"
Wheel Width5.9"
Wheel Head Speed1,400 RPM
Wheel Head Angle60 Degree
X-Axis Travel10.8"
Z-Axis Travel28.3"
Min. Increment0.00003"
Rapid Feed Rate ( X / Z )197 IPM
Work Head CenterMT #4
Work Head Speed500 RPM
Tail Stock CenterMT #4
Tail Stock Travel1.9"
Spindl Motor10 HP
Center Height43.3"
Approximate Dimensions133" x 106"
Approximate Weight10,000 LBS

Equipped With:
Fanuc 0i CNC
Wheel
Wheel Flange
Diamond Dresser
Magnetic Seperator
Wheel Lube System
Hydraulic System
Tool Kit & Box
Balancing Arbor
Dial Gage


Marposs OD Measuring System (Optional)
Marposs ID Measuring System (Optional)



FOB: Los Angeles Port
DELIVERY: 120 Days
